Brick Veneer vs Solid Masonry in BC: Why the Repair Differs

In Mount Pleasant you can find two brick buildings a block apart that look like the same wall from the sidewalk: red-brown brick, white salt stains under the windows, a stepped crack climbing from one corner. One is a 1910s apartment block with walls three bricks thick that hold up every floor. The other is 1990s infill, a single layer of brick tied to wood studs. The repair that saves the first building would rot the second.

Sorting out brick veneer vs solid masonry in BC is the first step on every brick job we price. It tells us what the brick is carrying, where the water goes when it rains, which mortar belongs in the joints, and whether a structural engineer has to sign off before anyone opens the wall.

How do you tell brick veneer from solid masonry in BC?

Look at the bond pattern, the window openings and the building's age. Solid masonry usually shows header bricks, laid end-out, every fifth to seventh course, with deep brick reveals and arched or stone lintels at windows. Brick veneer shows long runs of stretchers, weep holes along the bottom course and a thin steel angle over openings. In BC, almost every brick house built after 1950 is veneer; brick apartment and commercial blocks from before 1930 are usually solid.

Bond patterns can mislead you, though. Builders from the 1950s to the 1970s sometimes cut bricks in half and set the short ends facing out so a veneer wall would look like old common bond. Masons call these snapped headers, and they fool a lot of home inspectors.

Three checks settle most cases.

From the attic or an unfinished basement, look at the back of the exterior wall. Wood studs and plywood or board sheathing mean veneer. Brick means solid masonry, and in the basement you will often see floor joists sitting in pockets cut into it.

From inside a finished room, knock on the exterior wall in a few places. Plaster applied straight onto brick sounds dense and dead wherever you tap. Drywall or lath on studs sounds hollow between the studs.

Along the bottom course of brick, look for weep holes: open vertical joints or small plastic tubes every 600 to 800 mm. Weeps mean there is a drainage cavity behind the brick, and a cavity means veneer.

When the checks disagree, a mason can pull one brick at a low spot behind a shrub and look behind it. It takes about fifteen minutes, and the brick goes back in the same visit.

What each wall is doing

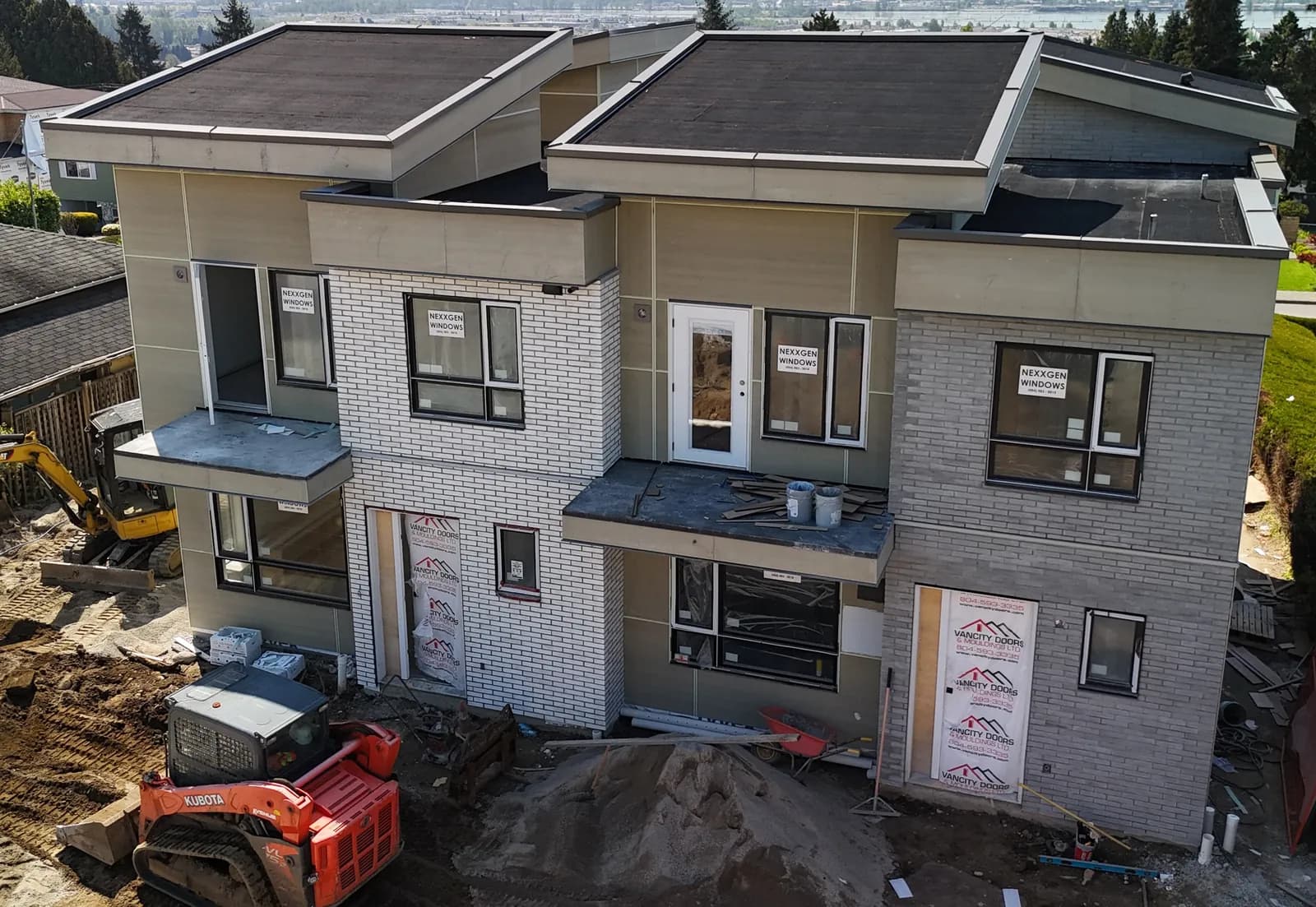

Brick veneer is cladding. The brick, usually 90 mm deep, sits on the foundation ledge or on a steel shelf angle, stands about 25 mm off the sheathing, and is held to the studs by corrugated metal ties set into the mortar joints. The wood or steel frame carries the house. Take every brick off and the roof stays up. The veneer's job is to take the rain, let whatever gets through run down its back face, and send that water out through flashing and weep holes at the base of the wall and above each window and door.

A solid masonry wall holds the building up. Two or three layers of brick, which masons call wythes, are bonded together by header courses and carry the floor joists and the roof. The wall is roughly 230 mm thick at two wythes and 330 mm at three, often thicker at the ground floor of taller buildings. It has no air space and, apart from copings and sills, almost no flashing. It handles rain by mass. The brick and its soft lime mortar soak up water during a storm, then dry out toward both faces once the rain stops.

Everything about the repair differs from that table onward: the diagnosis, the materials, the permits, and who has to sign the drawings.

How brick veneer fails in BC

Veneer fails from behind. Clay brick outlasts everything else in the wall, and the parts that give out first are the ones nobody can see.

Ties come first. On houses built from the 1960s to the 1990s, the ties were usually galvanized steel. After 30 or 40 wet winters the zinc is gone and the steel rusts through right at the mortar joint, most often on south and west elevations and on homes within a few hundred metres of salt water in White Rock, West Vancouver or Oak Bay. The first visible sign is a bulge, or a long horizontal crack along one bed joint. A wall with failed ties is standing on its own weight and very little else, and in an earthquake it is one of the first things to come off a house.

The cavity is the second weak point. A 25 mm air space only drains if it is open, and on a lot of older veneer it is packed with mortar droppings at the base. The weep holes were never cut, or a painter caulked them shut to "seal" the wall, and there is no base flashing at all. In a Vancouver winter a fair amount of rain passes through a single wythe of brick, and with the cavity blocked it has nowhere to go but into the sheathing. When we open veneer walls after 25 or 30 years, the bottom 600 mm of sheathing is where rot shows up first.

Then there is movement. Clay brick grows slightly over its life as it takes on moisture, while a new wood frame shrinks as it dries, by several millimetres per floor over the first couple of years. If the builder left no gap under window sills, at the soffit or under shelf angles, the brick and the frame push against each other. On three- and four-storey wood-frame buildings with brick veneer, the result is cracked brick at window corners and windows that stick.

Because the brick is a rain shield, veneer repair is mostly about the wall behind it. Stainless helical ties, drilled through the mortar joints into the studs, stabilize a wall with corroded ties as long as the bulge is under about a third of the brick's thickness, roughly 30 mm. Clearing the base of the cavity, cutting new weeps and adding base flashing will fix trapped water if the sheathing is still sound. Once the sheathing is soft, that section of brick has to come off so the wood, membrane and air space can be rebuilt, and the same brick usually goes back up. Our guide to masonry repair vs rebuild covers where that line falls.

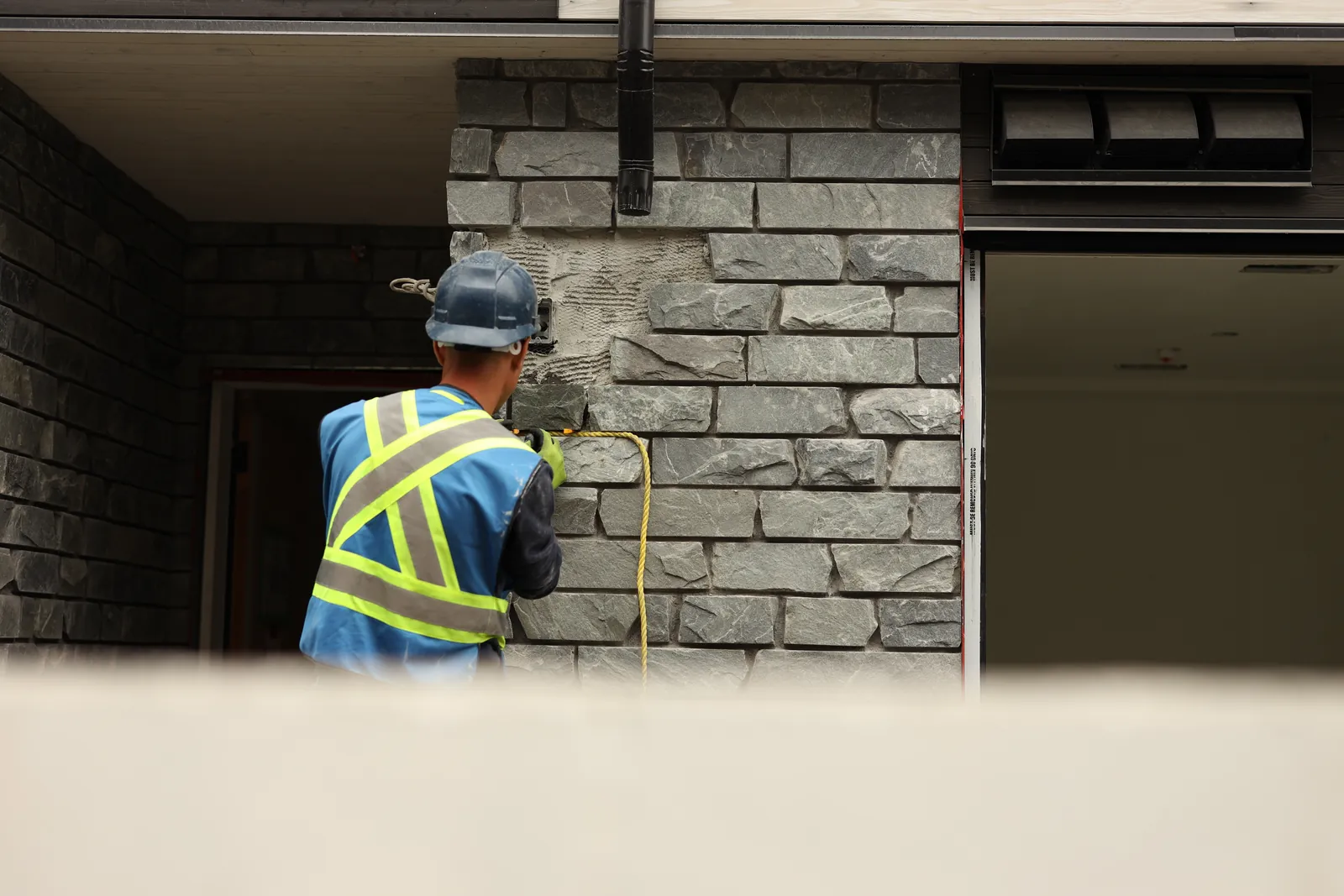

Repointing is the easy part of veneer work: a cement-lime mortar a little softer than the brick, tooled to match the original joint. Brick repointing in Vancouver covers how to match the mix.

How solid masonry fails in BC

Solid masonry fails from the outside in, and usually from the top down.

Water at the top of the wall does most of the damage. Parapets, chimneys and the last few courses below the roof stand exposed on both faces and catch rain from every direction. A cracked coping stone or a missing cap flashing lets water into the core of the wall, where it can sit for weeks. Wet lime mortar washes out, bricks loosen, and in a cold snap the faces of soft early brick pop off.

Hard mortar finishes the job. Through the middle of the last century, many old brick buildings in Vancouver and Victoria were repointed with Portland cement mortar, which is harder and far less permeable than the soft brick around it. The wall then has to dry through the brick instead of the joints. Salts collect just behind the brick faces, the faces spall, and the cement joints are left standing proud. On old buildings repointed this way you end up with a grid of cement ridges and the brick eroded back behind them.

Inside the wall, the wythes can come apart. Header bricks crack when the outer layer moves with heat and moisture while the inner layer stays put, and the outer wythe starts to bulge on its own. This is the solid masonry version of a tie failure, and it is more serious, because a load-bearing wall has turned into two thinner walls at the same spot where the floors bear on it.

Steel and iron built into the wall cause their own trouble. Old lintels, beam ends and window anchors rust, and rust takes up several times the volume of the steel it came from, enough to crack brick and lift whole courses. Floor joist ends sitting in damp pockets can rot too, which you will only find from inside.

Most solid brick buildings in BC are unreinforced masonry: no steel in the walls, and floors resting in pockets with little tying them to the brick. Engineers rank unreinforced masonry among the building types most at risk in a coastal BC earthquake, and parapets and chimneys are usually the first parts to fall.

The repair principle on solid masonry is to keep the wall in one piece and let it breathe. In practice that means lime repointing with a mix matched to the original (our article on lime mortar for heritage masonry explains the chemistry), salvaged or matched soft brick, stainless helical stitching across cracks, stainless anchors that pin the wythes together and tie the wall to each floor, and rebuilt parapet tops with proper caps. Rebuilding any part of a load-bearing wall needs temporary shoring and a structural engineer's design. On a heritage-registered building, it may also need a heritage alteration permit. A large enough alteration can trigger current code requirements, seismic upgrades included, so price the scope with that possibility in mind before anyone commits.

Same symptom, different cause

The symptom on the wall can look identical while the cause behind it differs with the kind of wall.

Getting the wall type wrong costs money in both directions. A contractor who treats a bulging veneer as a mortar problem leaves rotting sheathing behind fresh joints, and the bill comes back in five years. On solid masonry the damage is harder to undo. Cement repointing, a clear film-forming sealer or a coat of acrylic paint can take decades off brick that has already lasted a century.

What brick veneer and solid masonry repairs cost in BC in 2026

Typical 2026 ranges in Metro Vancouver and on Vancouver Island are below. Solid masonry costs more on almost every line, mostly because of engineering, lime mixes, matched brick and access on taller buildings.

Add $1,500 to $4,000 per elevation for scaffold on a two-storey house. On a three-storey building at the property line, scaffold with sidewalk protection and a municipal street-use permit is priced per job and can be a large share of the total.

Two examples show how far apart the numbers land.

Take a 1970s Burnaby house with 600 square feet of brick veneer across the front, galvanized ties corroding and a few bulges under 20 mm. Retrofit ties over the whole elevation at $10 to $18 per square foot, repointing the worst 200 square feet at $15 to $22, and scaffold bring the job to about $10,500 to $19,000.

Now take a three-storey solid brick apartment building from the 1910s, with a 2,000-square-foot street elevation that was repointed in cement decades ago and about 150 spalled bricks. Lime repointing at $25 to $55 per square foot comes to $50,000 to $110,000 on its own. Brick replacement adds $6,750 to $18,000, and mortar analysis, engineering and scaffold come on top. Most of that money goes into raking out hard cement joints by hand without chipping the soft brick on either side, which is slow work.

On either wall, a written estimate should list the diagnostic, the repair and an allowance for what the test openings could not show, each with a unit price. That way, if the wall is worse once it is open, the extra already has a price and nobody negotiates it with scaffold standing.

Why BC rain treats the two walls differently

Vancouver International Airport records about 1,200 mm of rain a year, and the upper North Shore gets close to twice that. Most of it falls between October and March, often as atmospheric rivers that drive rain sideways into south and west walls for two or three days at a time.

Brick veneer handles that volume as long as the cavity drains. Block the gap and the wall can rot through without a mark on the face of the brick.

Solid masonry depends on drying between storms, and a BC winter does not offer many dry days. A wall that dries out quickly in July can stay damp from November to March. Anything that slows drying pushes it toward damage: cement mortar, paint, a clear sealer, or insulation added to the inside face.

That last one catches owners doing energy upgrades. Insulating the inside of a solid brick wall keeps the brick colder and wetter all winter, which is how spalling starts, especially in the Fraser Valley and at higher elevations on the North Shore, where freeze-thaw cycles come more often than on the coast. If an old brick building is getting an energy retrofit, have the wall's moisture behaviour modelled first (engineers call it a hygrothermal analysis) before any insulation goes in.

Strata and commercial buildings

Brick on newer BC strata buildings is almost always veneer, and on concrete mid-rises it hangs from a steel shelf angle at each floor. Each shelf angle needs a soft movement joint under it so the brick below can expand. Where that joint was filled solid with mortar, the brick cracks or spalls in a line at every floor. The repair is to open the joint, treat or replace rusted angle, and reseal it, floor by floor from a swing stage or scaffold.

Solid masonry strata buildings exist too, mostly converted apartment blocks in the West End, Mount Pleasant and Victoria. In most strata plans the exterior walls are common property, so the corporation pays for the repair and council has to approve it. Because those walls are structural, the scope starts with an engineer's assessment, and councils should budget for that before they ask contractors to bid. Our building envelope repair crews work alongside the strata's engineer or envelope consultant on both kinds of wall.

Repairs we end up undoing

Each of these turns up on BC brick jobs every year.

• Fresh repointing on a bulging veneer wall where nobody checked the ties. The joints look new and the wall is still loose.
• Weep holes drilled into solid masonry because an inspection report said they were missing. There is no cavity behind solid brick for them to drain, so they only let water in.
• A clear water repellent or acrylic paint over a wet wall without fixing the water source. On veneer it hides the problem for a few years. On solid masonry it traps the moisture in the brick.
• Pressure washing soft early brick, which strips the hard fired skin off its face.

What we recommend

On brick veneer, spend the money behind the brick. Any house built before 2000 should have its ties checked before anyone repoints. Keep the weeps open and the base flashing clear of soil and mulch, and repoint once you know the ties and sheathing are sound. Most veneer walls can be stabilized in place for $25 to $40 per square foot with ties and repointing together, which buys decades and costs a fraction of a rebuild.

Solid masonry deserves more caution than money. Repair it in place, let it breathe, and bring in a structural engineer before any section gets rebuilt. Insist on a lime mix matched to the original, and turn down any proposal that adds cement, sealer or interior insulation without a moisture analysis to back it. Treated that way, a solid brick wall that has stood since 1910 can stand for another century.

If you cannot tell which wall you have, pay for the diagnostic visit before anyone touches the mortar. On a brick veneer vs solid masonry question, a $600 to $1,200 visit is the cheapest line in the whole project.

FAQ

Is brick veneer structural? No. Brick veneer carries its own weight down to the foundation or a steel shelf angle and nothing else. The wood or steel frame behind it holds up the floors and the roof. The ties between the veneer and the frame keep the brick from falling outward, which is why corroded ties are a safety issue even when the house itself is sound.

Can you insulate a solid brick wall from the inside? Sometimes, with care. Interior insulation keeps the brick colder and wetter through the winter, and in BC's long wet season that can lead to freeze-thaw spalling and rot in joist ends set into the wall. Have the wall's moisture behaviour assessed first, make sure the top and base of the wall shed water, and use a vapour-open insulation system an engineer has checked for that specific wall.

Do solid masonry repairs need a structural engineer? Repointing and replacing individual bricks usually do not. Rebuilding any part of a load-bearing wall, stitching structural cracks, anchoring wythes or tying walls to floors does, and so does parapet work on most commercial and strata buildings. Heritage-registered buildings may also need a heritage alteration permit from the municipality.

How long does brick veneer last compared with solid masonry? The brick in both can last more than a century. A veneer wall's life is set by its ties, flashing and sheathing: with galvanized ties, major work often comes due at 30 to 40 years, and with stainless ties and a clear cavity, 60 to 80 years is realistic. Solid masonry can stand 150 years or more if it is repointed with compatible lime mortar every 50 to 80 years and kept dry at the top.
